This is the ultimate test for an industrial dishwasher. Tough dirt. On different utensils. The Winterhalter UF series is perfect for when washing becomes a challenge. Robust, powerful, and innovative.
Features for perfect washing results and maximum hygiene. Are you a baker, butcher, or restaurant owner who washes under extreme conditions? If so, the UF utensil washer is ideal for you.

Baskets per hour: 12.
Units per hour: 144.
Molds or Utensils: 2880.

Characteristics:

General information

• Tank capacity: 69 l.

• Interior dimensions of the basket: 612 x 672 mm.

• Useful entry height: 640 mm.

• Washing pump: 2.5 kW.
• Noise emission: <70 dB(A).

• IP protection rating: IPX5.
• Maximum inlet water temperature: 20 °C.
• Required dynamic pressure: 1.5 –10 / 150–1,000 bar/ kPA.

Specific data:

• Standard theoretical power *2 baskets/hour: 12 / 24 / 40.
• Theoretical power short program *2 baskets/hour: 23 / 42 / 64.

• Rinse water volume per wash cycle *4: 4.7 l.

• Tank temperature: 63 °C.
• Rinse temperature: 85 °C.

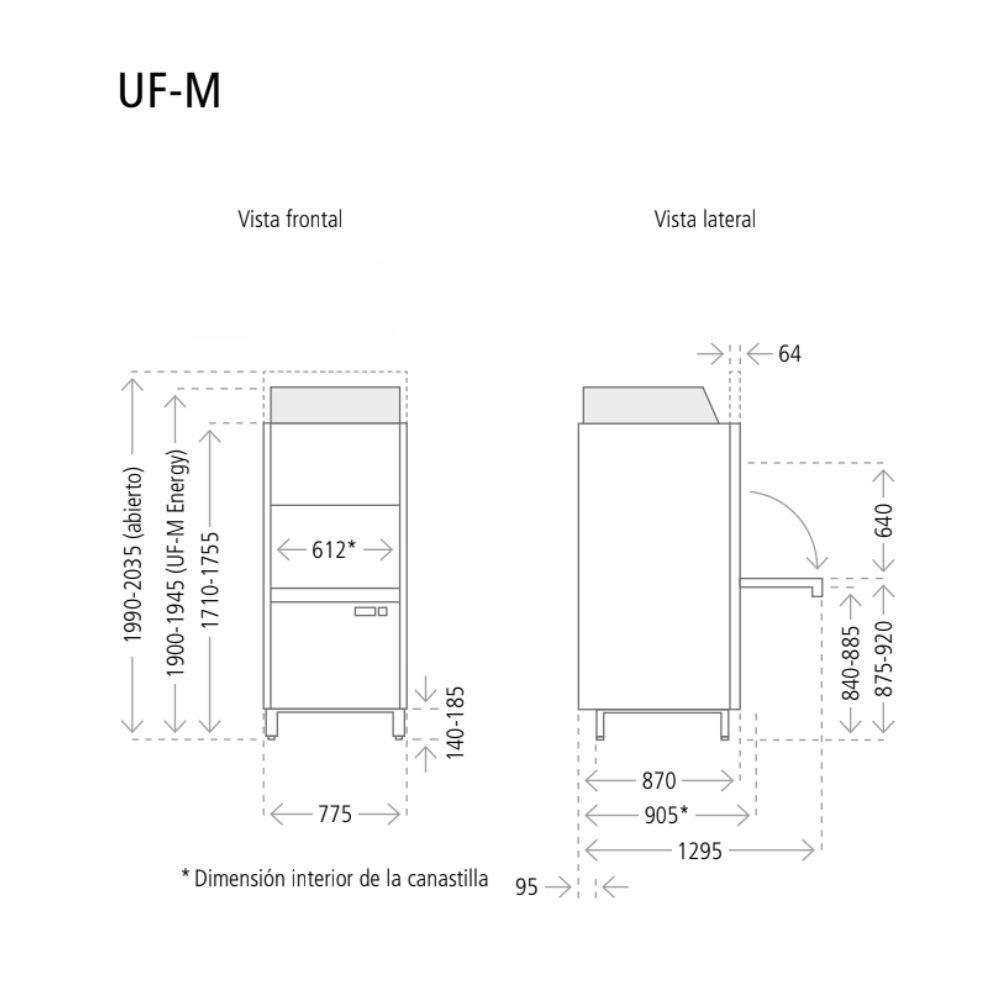

• Dimensions: 77.5 x 90.5 x 190-194.5 cm (Width x Depth x Height).

*1 Inlet water temperature <20 °C.
*2 Depending on the conditions at the installation site (inlet water temperature / electrical connection), the indicated values ​​may be reduced.
*3 Min. 25A fuse, boiler and tank resistance Performance.
*4 Non-binding information. The actual rinse water volume depends on the installation site conditions.
*5 The actual power varies depending on the mains voltage.
