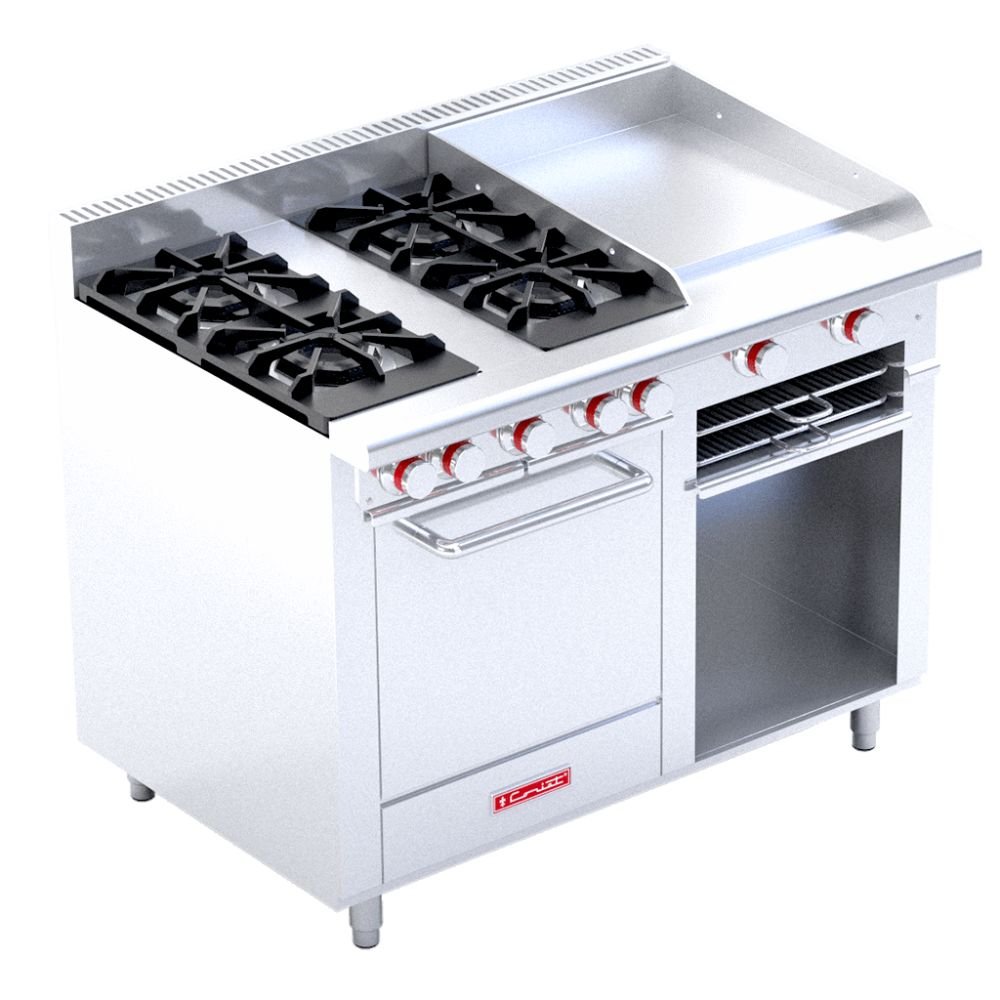

The Coriat Minichef Master Freestanding Range is perfect for commercial kitchens. With four burners and a griddle, it offers versatility and performance in preparing a variety of dishes, providing efficiency and durability to handle large volumes of food in high-demand environments.
Iron:
- 1 Cold rolled steel sheet 3/4" thick, usable area of: front: 0.504 m, depth: 0.560 m.
- 1 Grill with 0.435 m frontage.
- 2 Stainless Steel "U" Burners of 21,000 Btu/hc/u.
- 2 Individual Stainless Steel Pilot Lights
- 2 Imported pilot flame adjustment valves, CSA certified for commercial use.
- 2 Imported gas valves, CSA certified for commercial use.
- 1 Tray to collect drippings from the gratinator.
- 1 Grease collection tray.
- Open burners
- 4 Solid cast iron octagonal burners of 24,000 Btu/hc/u.
- 2 Cast iron top grills mounted on a semi-sealed A.Inox. 304 cover.
- 4 Individual stainless steel pilot lights with mushroom-type threaded heads on the grills.
- 4 Imported pilot flame adjustment valves, CSA certified for commercial use on grills.
- 4 Imported gas valves, CSA certified for commercial use on grills.
- 1 Tray to collect drippings under the grills.
Oven:
- 1 Medium oven with interior dimensions of: front: 0.470 m, depth: 0.590 m, height: 0.420 m.
- 2 Nickel-plated grills.
- 1 Thermostat with integrated safety valve, range 100 to 300°C (212 to 572°F), CSA certified for commercial use.
- 1 Stainless steel tubular burner of 26,000 Btu/h.
- 1 Solid door with perimeter gasket for airtight closure.
- 1 Compartment with capacity for 5 trays of 0.455 m x 0.500 m.
- 1 Removable oven floor for easier cleaning.
General Characteristics:
- 1 Low backrest 0.090 m high.
- 7 Zinc knobs with red silicone heat insulation.
- 1 Compartment with door under the iron.
- 4 Stainless Steel Leveling Tubular Legs
- Total external dimensions, without packaging: front: 1.200 m, depth: 0.810 m, height: 1.060 - 1.090 m, working height: 0.950 - 0.980 m.
- Includes nozzle kit for converting LPG to NG gas.
Check with your advisor regarding delivery times before making your purchase .
